Zhengzhou South Station Steel Box Girder Erection

A photographic case record of curved steel box girder fabrication and erection at the Zhengzhou South Station project.

Project location: Zhengzhou South Station area, Zhengzhou, Henan, China

Steel box girder fabrication and erection

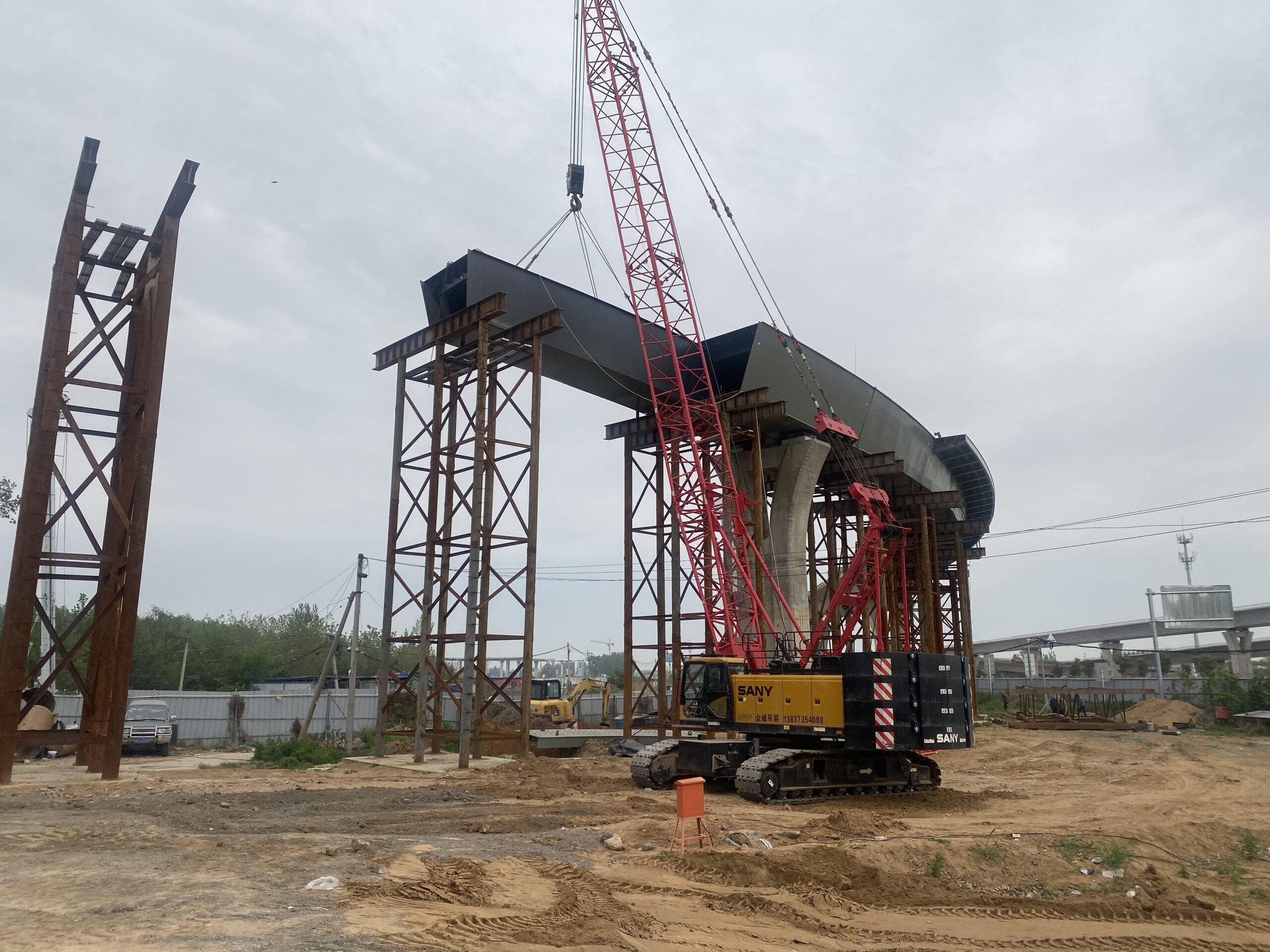

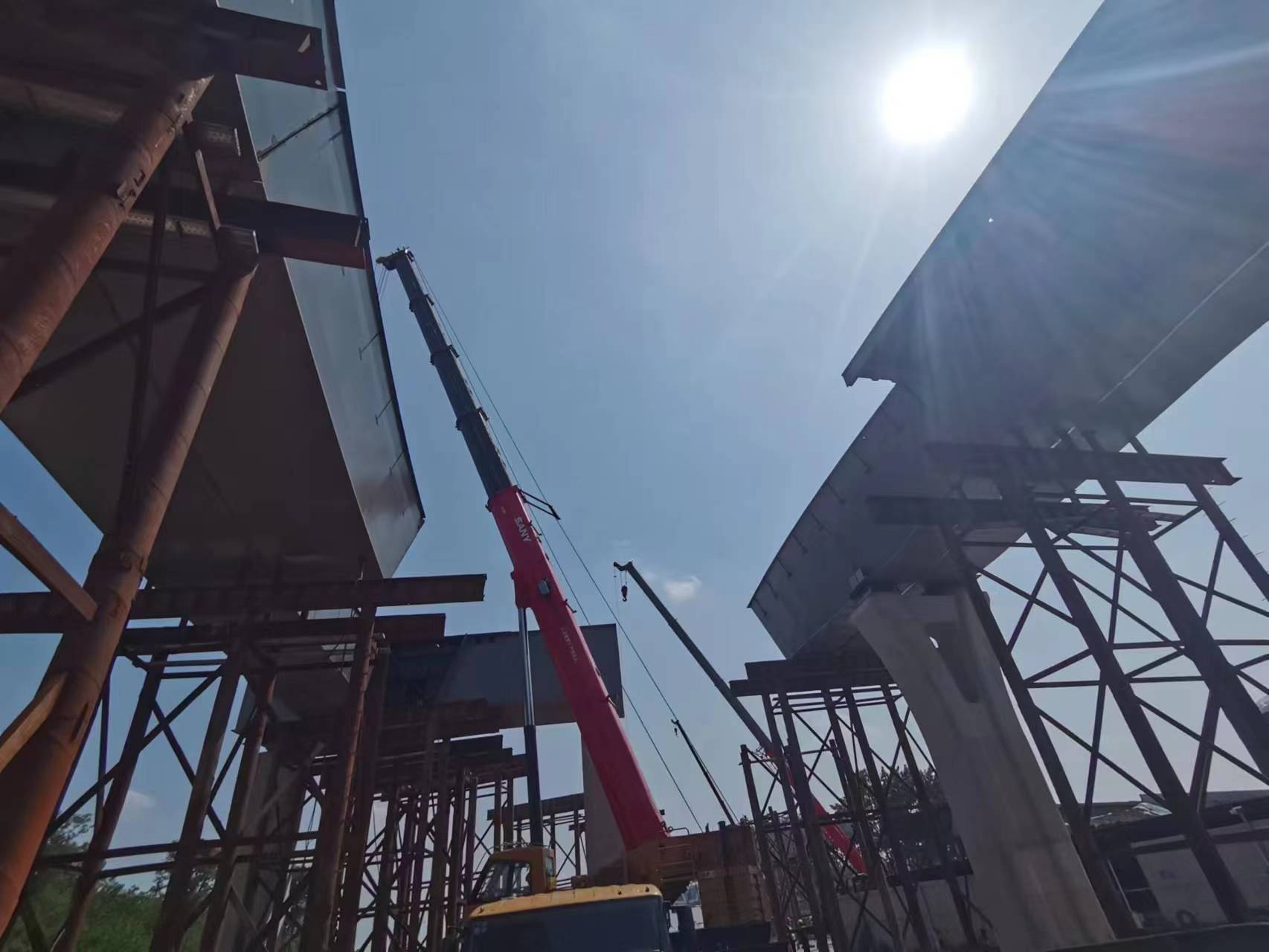

Photographs associated with Zhengzhou South Station show curved steel bridge sections during shop fabrication and site installation. The images include large members lifted by cranes and positioned over temporary supports.

Curved girder geometry makes segment fit-up and alignment important during fabrication and erection. Temporary supports provide stability while the steelwork is assembled at the site.

Transport hub project context

The image record documents steel box girder work in the Zhengzhou South Station area. The project illustrates the coordination needed to fabricate, move and position large steel bridge members in a transport hub setting.
