Product Overview
Steel Bracing & Tie Rod is tension, compression and restraint members used to stabilize steel frames and transfer lateral forces. It is supplied as a project-specific solution rather than a fixed catalogue item. Geometry, member sizes, connections, protection systems and delivery segmentation are confirmed from approved documents.
The engineering and fabrication scope can coordinate gusset plates, frame nodes, purlins, girts and temporary erection stability. Early review of drawings, loads, site conditions and transport limits helps define a practical supply package and reduces interface risk.
Product Core Parameters
| Product type | Steel Bracing & Tie Rod |
|---|---|
| Primary configuration | tension, compression and restraint members used to stabilize steel frames and transfer lateral forces |
| Engineering basis | Approved project drawings, loads, site conditions and applicable codes |
| Dimensions / span | Project-specific |
| Material grade | Defined by approved design and procurement specification |
| Connections | Welded, bolted or combined as detailed |
| Inspection | Approved inspection and test plan; specified NDT where required |
| Surface protection | Selected for exposure, service life and maintenance plan |
| Delivery | Component size, marking and sequence coordinated with transport and erection |
Key Features
- Project-specific engineering: The steel bracing & tie rod is developed around slenderness, tensioning, connection eccentricity and installation adjustment; final member sizes and details follow approved calculations and drawings.
- Coordinated interfaces: Design and detailing account for gusset plates, frame nodes, purlins, girts and temporary erection stability, reducing conflicts during fabrication and site assembly.
- Controlled prefabrication: CNC processing, documented fit-up and controlled welding improve dimensional consistency and traceability before shipment.
- Connection detailing: Bolted, welded and bearing interfaces are coordinated with the actual load path, access, tolerances and erection method.
- Inspection planning: Material verification, dimensional checks, weld inspection and specified NDT are tied to the approved quality plan.
- Delivery-ready documentation: Member marks, packing lists, inspection records and erection information are prepared to match the agreed supply scope.
Main Components
The exact bill of materials is project-specific. A typical steel bracing & tie rod package may include:
- 01 — Rod, angle, tube or section bracing members: Detailed and fabricated according to its structural function, connection requirements and approved drawings.

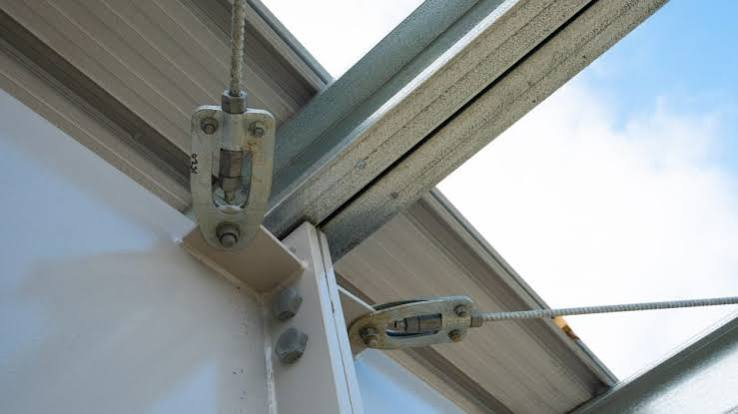

- 02 — Turnbuckles and tensioning devices: Detailed and fabricated according to its structural function, connection requirements and approved drawings.

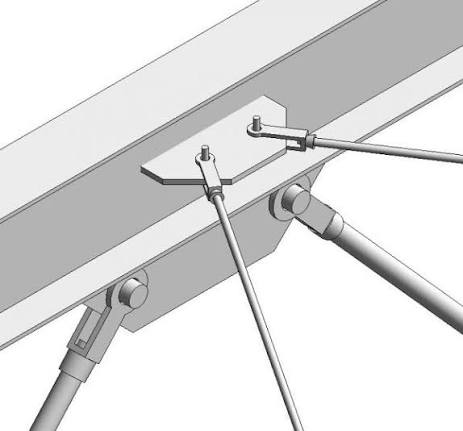

- 03 — Gusset and clevis plates: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 04 — Pins, bolts and end connections: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 05 — Roof and wall tie members: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 06 — Identification and adjustment details: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
Typical Applications
01 — Industrial and warehouse buildings
Suitable where the project requires slenderness, tensioning, connection eccentricity and installation adjustment. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.

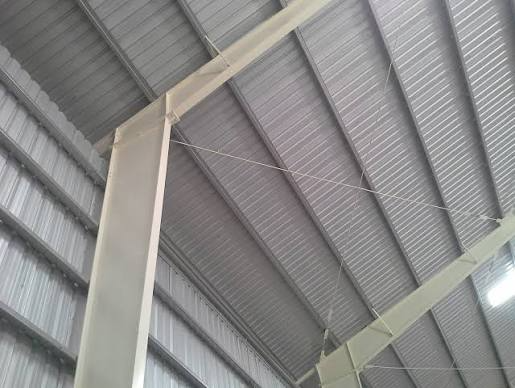

02 — Roof and wall stability systems
Suitable where the project requires slenderness, tensioning, connection eccentricity and installation adjustment. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
03 — Towers, platforms and equipment frames
Suitable where the project requires slenderness, tensioning, connection eccentricity and installation adjustment. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
Manufacturing & Delivery
- Review approved member and connection drawings
- Confirm material grades, dimensions, tolerances and inspection hold points
- Verify incoming material certificates and identification
- Perform CNC cutting, drilling, machining and plate preparation
- Complete controlled assembly, fit-up and welding
- Check straightness, geometry, holes and connection interfaces
- Perform visual inspection and specified NDT
- Apply surface treatment and verify coating quality
- Mark, package and deliver by erection sequence
Project Customization
Customization can cover overall geometry, member sections, material grades, connections, openings, interfaces, inspection scope, coating system, fire protection, packing and erection sequence. For a technical review, provide the project location, design basis, drawings, loads, quantities, required standards, inspection requirements, finish and delivery destination.
Quotation input: architectural or structural drawings, dimensional schedule, load criteria, material specification, connection responsibilities, coating requirements, quality documentation and target delivery program.
