Product Overview

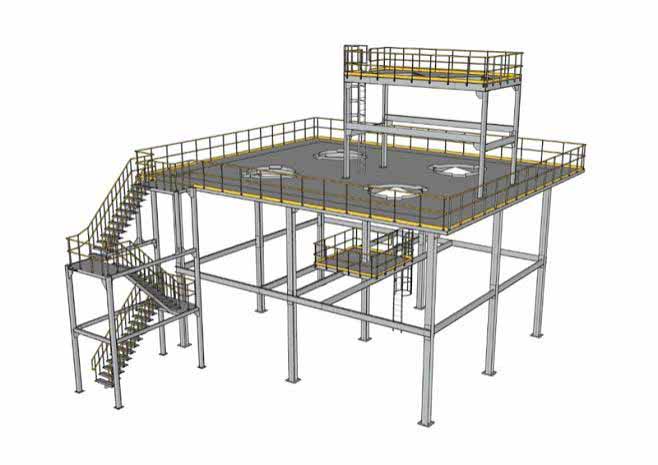

Industrial Steel Platform is an elevated structural steel platform configured for equipment support, operation, inspection and maintenance access. It is supplied as a project-specific solution rather than a fixed catalogue item. Geometry, member sizes, connections, protection systems and delivery segmentation are confirmed from approved documents.
The engineering and fabrication scope can coordinate equipment bases, piping, stairs, handrails, grating and existing structures. Early review of drawings, loads, site conditions and transport limits helps define a practical supply package and reduces interface risk.
Product Core Parameters
| Product type | Industrial Steel Platform |
|---|---|
| Primary configuration | elevated structural steel platform configured for equipment support, operation, inspection and maintenance access |
| Engineering basis | Approved project drawings, loads, site conditions and applicable codes |
| Dimensions / span | Project-specific |
| Material grade | Defined by approved design and procurement specification |
| Connections | Welded, bolted or combined as detailed |
| Inspection | Approved inspection and test plan; specified NDT where required |
| Surface protection | Selected for exposure, service life and maintenance plan |
| Delivery | Component size, marking and sequence coordinated with transport and erection |
Key Features
- Project-specific engineering: The industrial steel platform is developed around live loads, vibration, access safety, openings and equipment maintenance clearances; final member sizes and details follow approved calculations and drawings.
- Coordinated interfaces: Design and detailing account for equipment bases, piping, stairs, handrails, grating and existing structures, reducing conflicts during fabrication and site assembly.
- Controlled prefabrication: CNC processing, documented fit-up and controlled welding improve dimensional consistency and traceability before shipment.
- Connection detailing: Bolted, welded and bearing interfaces are coordinated with the actual load path, access, tolerances and erection method.
- Inspection planning: Material verification, dimensional checks, weld inspection and specified NDT are tied to the approved quality plan.
- Delivery-ready documentation: Member marks, packing lists, inspection records and erection information are prepared to match the agreed supply scope.
Main Components
The exact bill of materials is project-specific. A typical industrial steel platform package may include:
- 01 — Primary platform beams: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 02 — Secondary joists and deck supports: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 03 — Columns and bracing: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 04 — Floor plate, grating or deck system: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 05 — Stairs, ladders and guardrails: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 06 — Base plates, connections and equipment interfaces: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
Typical Applications
01 — Process and production platforms
Suitable where the project requires live loads, vibration, access safety, openings and equipment maintenance clearances. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
02 — Equipment maintenance platforms
Suitable where the project requires live loads, vibration, access safety, openings and equipment maintenance clearances. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.

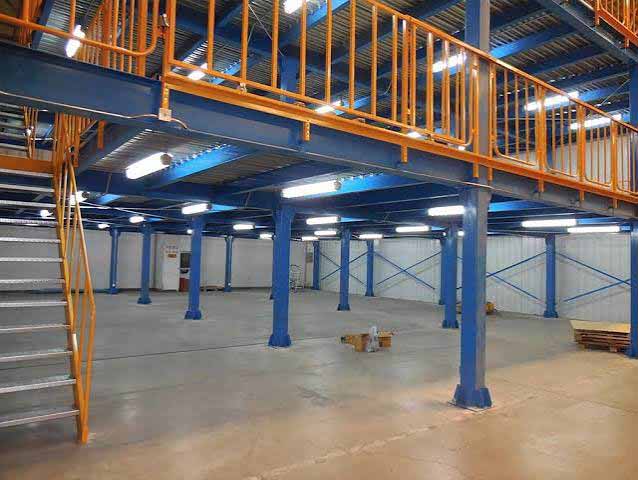

03 — Warehouse mezzanines and access decks
Suitable where the project requires live loads, vibration, access safety, openings and equipment maintenance clearances. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
Manufacturing & Delivery
- Review approved member and connection drawings
- Confirm material grades, dimensions, tolerances and inspection hold points
- Verify incoming material certificates and identification
- Perform CNC cutting, drilling, machining and plate preparation
- Complete controlled assembly, fit-up and welding
- Check straightness, geometry, holes and connection interfaces
- Perform visual inspection and specified NDT
- Apply surface treatment and verify coating quality
- Mark, package and deliver by erection sequence
Project Customization
Customization can cover overall geometry, member sections, material grades, connections, openings, interfaces, inspection scope, coating system, fire protection, packing and erection sequence. For a technical review, provide the project location, design basis, drawings, loads, quantities, required standards, inspection requirements, finish and delivery destination.
Quotation input: architectural or structural drawings, dimensional schedule, load criteria, material specification, connection responsibilities, coating requirements, quality documentation and target delivery program.
