Product Overview

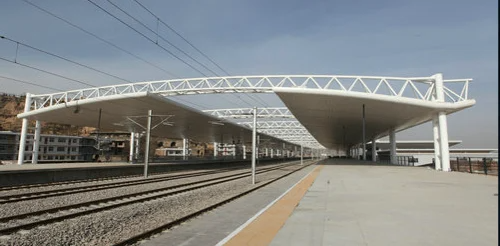

Pipe Truss steel structure showing the overall building or component configuration.

Pipe Truss is a long-span truss assembled from circular or tubular steel members for structural and architectural roof forms. It is supplied as a project-specific solution rather than a fixed catalogue item. Geometry, member sizes, connections, protection systems and delivery segmentation are confirmed from approved documents.

The engineering and fabrication scope can coordinate support bearings, glazing or roof systems, drainage and erection methodology. Early review of drawings, loads, site conditions and transport limits helps define a practical supply package and reduces interface risk.

Product Core Parameters

Product typePipe Truss
Primary configurationlong-span truss assembled from circular or tubular steel members for structural and architectural roof forms
Engineering basisApproved project drawings, loads, site conditions and applicable codes
Dimensions / spanProject-specific
Material gradeDefined by approved design and procurement specification
ConnectionsWelded, bolted or combined as detailed
InspectionApproved inspection and test plan; specified NDT where required
Surface protectionSelected for exposure, service life and maintenance plan
DeliveryComponent size, marking and sequence coordinated with transport and erection

Key Features

Pipe Truss steel structure showing key design and fabrication features.
  • Project-specific engineering: The pipe truss is developed around tubular node geometry, weld access, member orientation and architectural finish; final member sizes and details follow approved calculations and drawings.
  • Coordinated interfaces: Design and detailing account for support bearings, glazing or roof systems, drainage and erection methodology, reducing conflicts during fabrication and site assembly.
  • Controlled prefabrication: CNC processing, documented fit-up and controlled welding improve dimensional consistency and traceability before shipment.
  • Connection detailing: Bolted, welded and bearing interfaces are coordinated with the actual load path, access, tolerances and erection method.
  • Inspection planning: Material verification, dimensional checks, weld inspection and specified NDT are tied to the approved quality plan.
  • Delivery-ready documentation: Member marks, packing lists, inspection records and erection information are prepared to match the agreed supply scope.

Main Components

The exact bill of materials is project-specific. A typical pipe truss package may include:

  • 01 — Tubular top and bottom chords: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
  • 02 — Tubular diagonal and vertical members: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
  • 03 — Node joints and end connections: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
  • 04 — Lateral bracing and secondary members: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
  • 05 — Roof-support interfaces: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
  • 06 — Splices, bearings and erection points: Detailed and fabricated according to its structural function, connection requirements and approved drawings.

Typical Applications

Pipe Truss application showing structural steel use in the relevant project.

01 — Airport and station canopies

Suitable where the project requires tubular node geometry, weld access, member orientation and architectural finish. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.

02 — Sports and exhibition roofs

Suitable where the project requires tubular node geometry, weld access, member orientation and architectural finish. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.

03 — Architectural atriums and entrance structures

Suitable where the project requires tubular node geometry, weld access, member orientation and architectural finish. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.

Manufacturing & Delivery

HFCG steel fabrication workshop production line supporting controlled manufacturing and delivery.
  1. Review geometry, support layout, architectural envelope and design loads
  2. Develop the structural model, member forces, nodes and support movements
  3. Coordinate fabrication modules, transport limits and erection method
  4. Verify materials, node components and traceability
  5. Perform CNC cutting, end preparation, drilling and controlled welding
  6. Inspect member geometry, nodes, welds and specified NDT
  7. Conduct trial assembly or digital/interface verification where required
  8. Apply protection, mark modules and prepare erection drawings
  9. Deliver in the planned lifting and assembly sequence

Project Customization

Customization can cover overall geometry, member sections, material grades, connections, openings, interfaces, inspection scope, coating system, fire protection, packing and erection sequence. For a technical review, provide the project location, design basis, drawings, loads, quantities, required standards, inspection requirements, finish and delivery destination.

Quotation input: architectural or structural drawings, dimensional schedule, load criteria, material specification, connection responsibilities, coating requirements, quality documentation and target delivery program.
