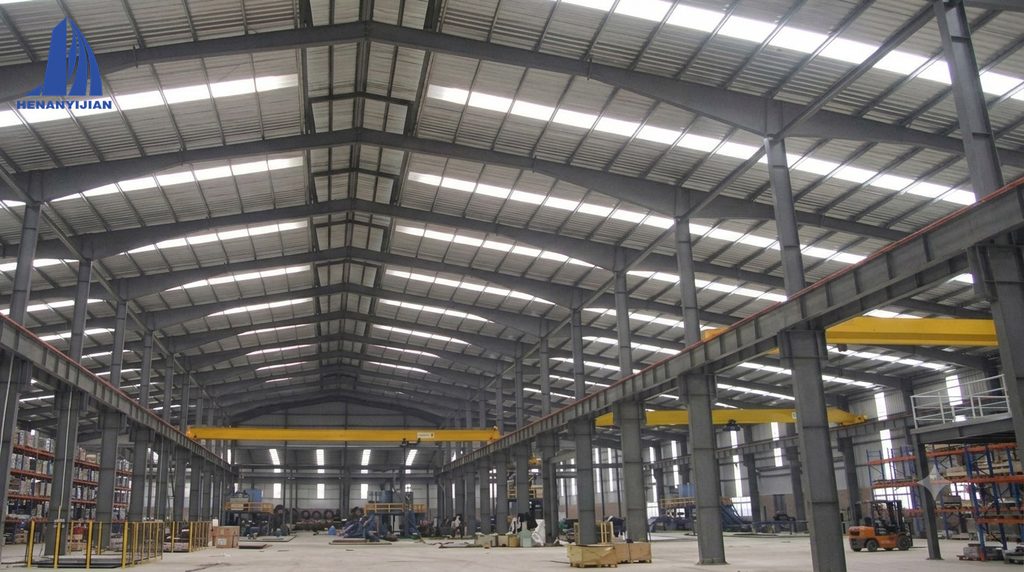

Product Overview
Heavy Steel Structure Workshop is a heavy-duty industrial building coordinated with large bays, high equipment loads and crane operations. It is supplied as a project-specific solution rather than a fixed catalogue item. Geometry, member sizes, connections, protection systems and delivery segmentation are confirmed from approved documents.
The engineering and fabrication scope can coordinate crane rails, equipment foundations, maintenance platforms and oversized access openings. Early review of drawings, loads, site conditions and transport limits helps define a practical supply package and reduces interface risk.
Product Core Parameters
| Product type | Heavy Steel Structure Workshop |
|---|---|
| Primary configuration | heavy-duty industrial building coordinated with large bays, high equipment loads and crane operations |
| Engineering basis | Approved project drawings, loads, site conditions and applicable codes |
| Dimensions / span | Project-specific |
| Material grade | Defined by approved design and procurement specification |
| Connections | Welded, bolted or combined as detailed |
| Inspection | Approved inspection and test plan; specified NDT where required |
| Surface protection | Selected for exposure, service life and maintenance plan |
| Delivery | Component size, marking and sequence coordinated with transport and erection |
Key Features
- Project-specific engineering: The heavy steel structure workshop is developed around heavy crane loads, large components, serviceability and robust load paths; final member sizes and details follow approved calculations and drawings.
- Coordinated interfaces: Design and detailing account for crane rails, equipment foundations, maintenance platforms and oversized access openings, reducing conflicts during fabrication and site assembly.
- Controlled prefabrication: CNC processing, documented fit-up and controlled welding improve dimensional consistency and traceability before shipment.
- Connection detailing: Bolted, welded and bearing interfaces are coordinated with the actual load path, access, tolerances and erection method.
- Inspection planning: Material verification, dimensional checks, weld inspection and specified NDT are tied to the approved quality plan.
- Delivery-ready documentation: Member marks, packing lists, inspection records and erection information are prepared to match the agreed supply scope.

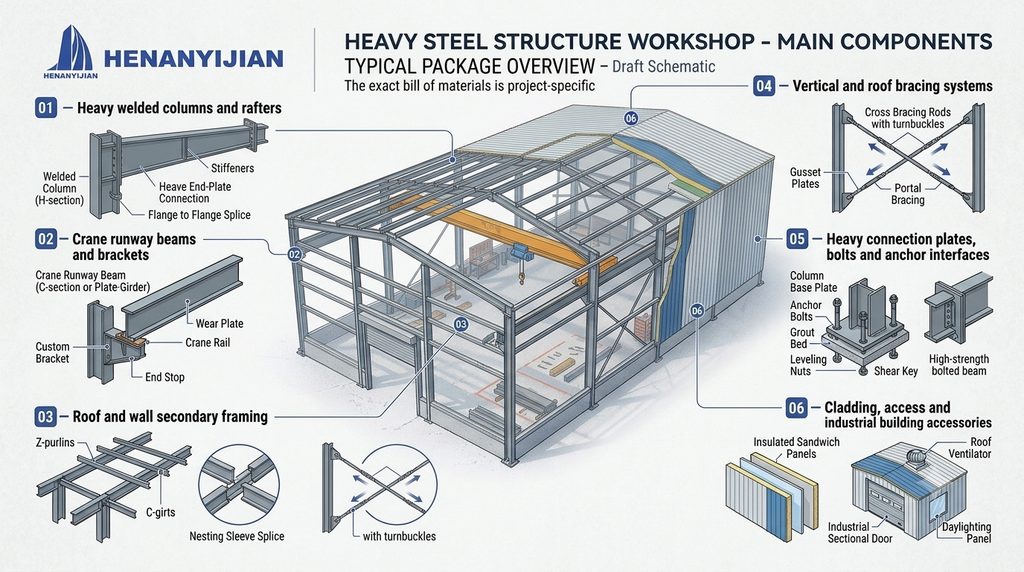

Main Components
The exact bill of materials is project-specific. A typical heavy steel structure workshop package may include:
- 01 — Heavy welded columns and rafters: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 02 — Crane runway beams and brackets: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 03 — Roof and wall secondary framing: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 04 — Vertical and roof bracing systems: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 05 — Heavy connection plates, bolts and anchor interfaces: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 06 — Cladding, access and industrial building accessories: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
Typical Applications
01 — Heavy machinery manufacturing plants
Suitable where the project requires heavy crane loads, large components, serviceability and robust load paths. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
02 — Large-equipment assembly workshops
Suitable where the project requires heavy crane loads, large components, serviceability and robust load paths. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
03 — Crane-equipped fabrication facilities
Suitable where the project requires heavy crane loads, large components, serviceability and robust load paths. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
Manufacturing & Delivery
Project Customization
Customization can cover overall geometry, member sections, material grades, connections, openings, interfaces, inspection scope, coating system, fire protection, packing and erection sequence. For a technical review, provide the project location, design basis, drawings, loads, quantities, required standards, inspection requirements, finish and delivery destination.
