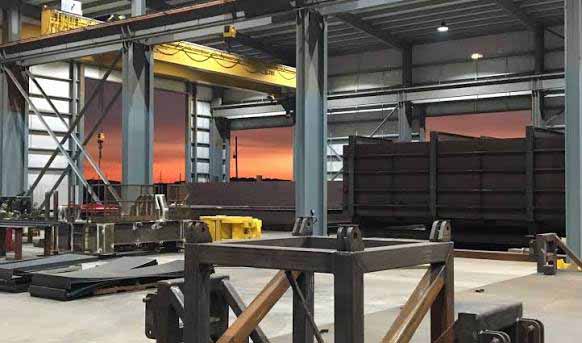

Product Overview
Custom Steel Structures is non-standard steel structures engineered and fabricated around unique geometry, loads and project interfaces. It is supplied as a project-specific solution rather than a fixed catalogue item. Geometry, member sizes, connections, protection systems and delivery segmentation are confirmed from approved documents.
The engineering and fabrication scope can coordinate foundations, equipment, envelope, architectural finishes and erection methodology. Early review of drawings, loads, site conditions and transport limits helps define a practical supply package and reduces interface risk.
Product Core Parameters
| Product type | Custom Steel Structures |
|---|---|
| Primary configuration | non-standard steel structures engineered and fabricated around unique geometry, loads and project interfaces |
| Engineering basis | Approved project drawings, loads, site conditions and applicable codes |
| Dimensions / span | Project-specific |
| Material grade | Defined by approved design and procurement specification |
| Connections | Welded, bolted or combined as detailed |
| Inspection | Approved inspection and test plan; specified NDT where required |
| Surface protection | Selected for exposure, service life and maintenance plan |
| Delivery | Component size, marking and sequence coordinated with transport and erection |

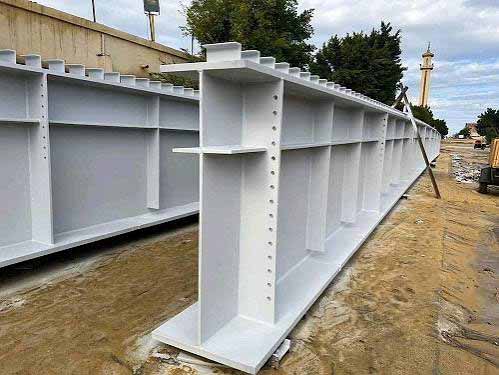

Key Features
- Project-specific engineering: The custom steel structures is developed around non-standard geometry, multidisciplinary interfaces and fabrication feasibility; final member sizes and details follow approved calculations and drawings.
- Coordinated interfaces: Design and detailing account for foundations, equipment, envelope, architectural finishes and erection methodology, reducing conflicts during fabrication and site assembly.
- Controlled prefabrication: CNC processing, documented fit-up and controlled welding improve dimensional consistency and traceability before shipment.
- Connection detailing: Bolted, welded and bearing interfaces are coordinated with the actual load path, access, tolerances and erection method.
- Inspection planning: Material verification, dimensional checks, weld inspection and specified NDT are tied to the approved quality plan.
- Delivery-ready documentation: Member marks, packing lists, inspection records and erection information are prepared to match the agreed supply scope.

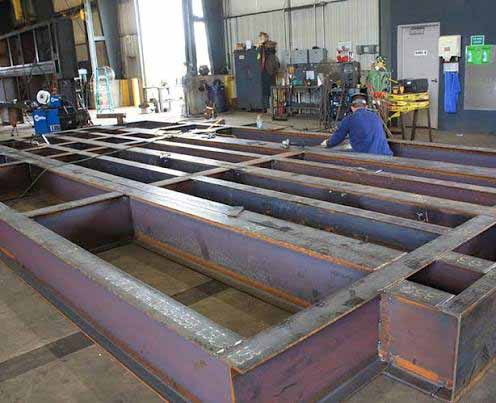

Main Components
The exact bill of materials is project-specific. A typical custom steel structures package may include:
- 01 — Custom frames and trusses: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 02 — Built-up beams and columns: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 03 — Platforms, stairs and access systems: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 04 — Bracing and stability members: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 05 — Special connection assemblies: Detailed and fabricated according to its structural function, connection requirements and approved drawings.
- 06 — Project-specific secondary steelwork: Detailed and fabricated according to its structural function, connection requirements and approved drawings.

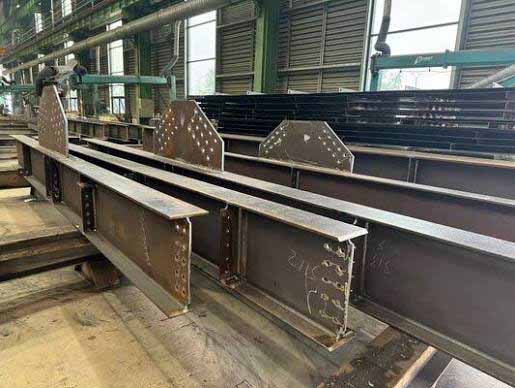

Typical Applications
01 — Special industrial structures
Suitable where the project requires non-standard geometry, multidisciplinary interfaces and fabrication feasibility. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
02 — Architectural and commercial steelwork
Suitable where the project requires non-standard geometry, multidisciplinary interfaces and fabrication feasibility. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
03 — Infrastructure and equipment-support projects
Suitable where the project requires non-standard geometry, multidisciplinary interfaces and fabrication feasibility. Final suitability depends on loads, geometry, site conditions, interfaces and applicable regulations.
Manufacturing & Delivery
- Receive drawings, BOM, revision status and technical specification
- Complete manufacturability review and raise technical queries
- Prepare or coordinate shop drawings and cutting data
- Verify incoming material and traceability
- Perform CNC cutting, drilling, machining and edge preparation
- Complete fit-up, welding and distortion control
- Inspect dimensions, welds and specified NDT
- Apply surface treatment and final inspection
- Mark, kit, package and release to the delivery schedule
Project Customization
Customization can cover overall geometry, member sections, material grades, connections, openings, interfaces, inspection scope, coating system, fire protection, packing and erection sequence. For a technical review, provide the project location, design basis, drawings, loads, quantities, required standards, inspection requirements, finish and delivery destination.
Quotation input: architectural or structural drawings, dimensional schedule, load criteria, material specification, connection responsibilities, coating requirements, quality documentation and target delivery program.
